ORF Laki-laki untuk ORFS Perempuan Putar Fitting Tee
Standar Industri: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Bentuk: Jalankan Tee
ORFS Fittings Peringkat tekanan kerja: 3215 psi hingga 5800 psi, 216 bar ke 400 bar.
Bahan Fittings: Baja karbon

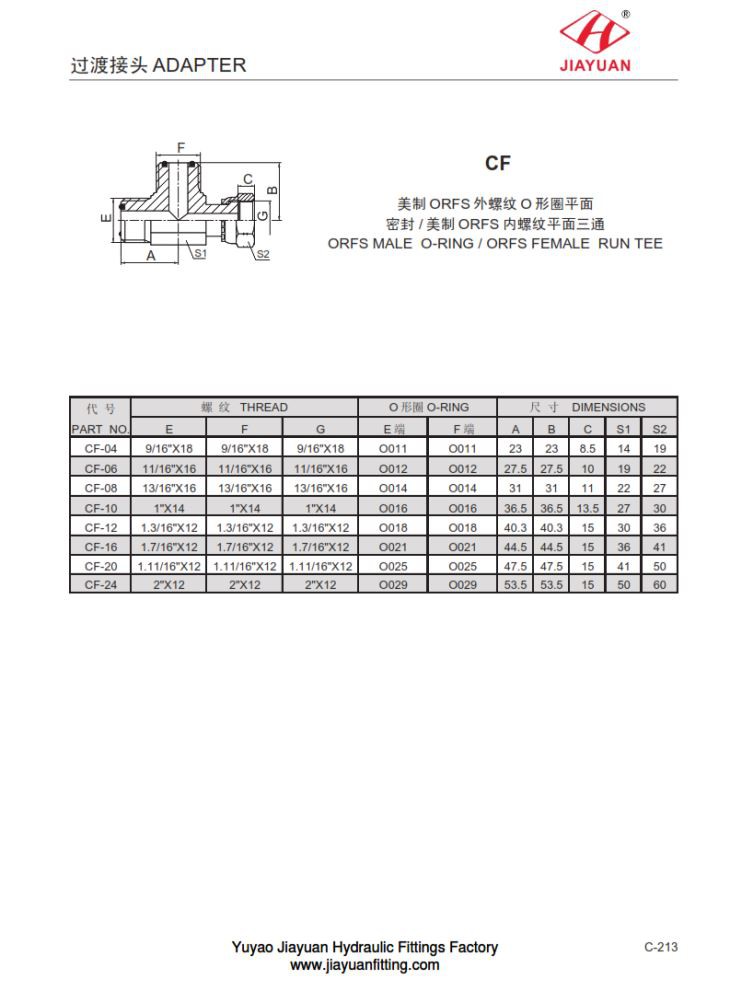

CF ORFS MALE O-RING / ORFS FEMALE RUN TEE Dimension Size tabel bagan tabel sebagai berikut:
PaRt @ NO. | THrEaD | O O- O.Cincin | DimENSⅠONs | |||||||||
E | F | G | E | F | J | B | C | S1 | S2 | |||
CF-04 | 9/16"X18 | 9/16"X18 | 9/16"X18 | O011 | O011 | 23 | 23 | 8.5 | 14 | 19 | ||
CF-06 | 11/16"X16 | 11/16"X16 | 11/16"X16 | O012 | O012 | 27.5 | 27.5 | 10 | 19 | 22 | ||
CF-08 | 13/16"X16 | 13/16"X16 | 13/16"X16 | O014 | O014 | 31 | 31 | 11 | 22 | 27 | ||
CF-10 | 1"X14 | 1"X14 | 1"X14 | O016 | O016 | 36.5 | 36.5 | 13.5 | 27 | 30 | ||
CF-12 | 1.3/16"X12 | 1.3/16"X12 | 1.3/16"X12 | O018 | O018 | 40.3 | 40.3 | 15 | 30 | 36 | ||
CF-16 | 1.7/16"X12 | 1.7/16"X12 | 1.7/16"X12 | O021 | O021 | 44.5 | 44.5 | 15 | 36 | 41 | ||
CF-20 | 1.11/16"X12 | 1.11/16"X12 | 1.11/16"X12 | O025 | O025 | 47.5 | 47.5 | 15 | 41 | 50 | ||
CF-24 | 2"X12 | 2"X12 | 2"X12 | O029 | O029 | 53.5 | 53.5 | 15 | 50 | 60 | ||
