Jenis Produk: 1FM-WD o fitting cincin tabung segel wajah
Standar Industri: SAE J1453, ISO 8434-3, DIN EN ISO 9974-2
Koneksi E ke F style: ORFS MALE / METRIC MALE CAPTIVE SEAL
Bentuk: lurus
ORFS Fittings Peringkat tekanan kerja: 3215 psi hingga 5800 psi, 216 bar hingga 400 bar.
Orfs wajah datar kit ukuran cincin dan desain segel cincin O juga dapat kami tawarkan.
Perbedaan antara o ring face seal dan o ring boss seal
Bahan Kelengkapan: Kuningan; Baja karbon; Besi tahan karat
Aplikasi: Peralatan Pertanian, Proses Otomotif, Transfer Bahan Kimia, Peralatan Konstruksi, Transfer Bahan Bakar, Hidrolik, Peralatan Manufaktur, Kelautan, Penanganan Material, Peralatan Bergerak, Ladang Minyak, Pengemasan, Transportasi

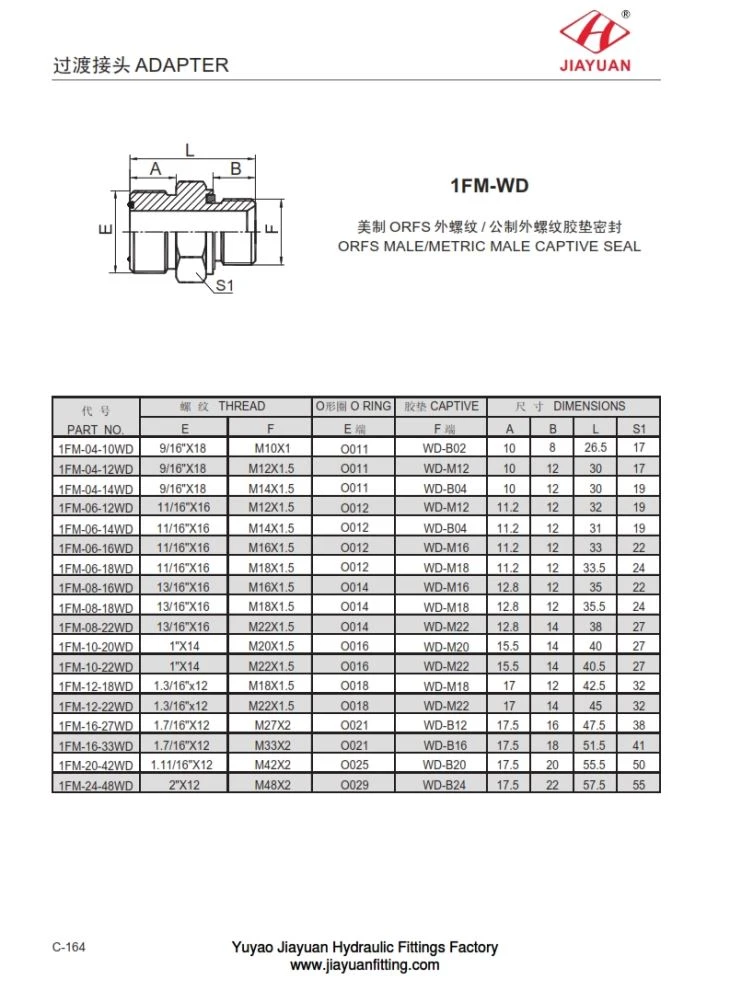

1FM-WD ORFS pria / metrik pria captive seal tabel Ukuran Dimensi sebagai berikut:
BAGIAN TIDAK. | BENANG | HAI O RI | NG CAPTI | VE UKURAN | ||||
E | F | E | F | SEBUAH | B | L. | S1 | |
1FM-04-10W D | 9/16 "X18 | M10X1 | O 01 1 | WD-B02 | 10 | 8 | 26.5 | 17 |
1FM-04-12WD | 9/16 "X18 | M12X1.5 | O 01 1 | WD-M1 2 | 10 | 12 | 30 | 17 |
1FM-04-14WD | 9/16 "X18 | M14X1.5 | O 01 1 | WD-B0 4 | 10 | 12 | 30 | 19 |
1FM-06-12WD | 11/16 " X 16 | M12X1.5 | O 01 2 | WD-M1 2 | 11.2 | 12 | 32 | 19 |
1FM-06-14WD | 11/16 "X16 | M14X1.5 | O 01 2 | WD-B0 4 | 11.2 | 12 | 31 | 19 |
1FM-06-16WD | 11/16 "X16 | M16X1.5 | O 01 2 | WD-M1 6 | 11.2 | 12 | 33 | 22 |
1FM-06-18WD | 11/16 "X16 | M18X1.5 | O 01 2 | WD-M1 8 | 11.2 | 12 | 33.5 | 24 |
1FM-08-16WD | 13/16 "X16 | M16X1.5 | O 01 4 | WD-M1 6 | 12.8 | 12 | 35 | 22 |
1FM-08-18WD | 13/16 "X16 | M18X1.5 | O 01 4 | WD-M1 8 | 12.8 | 12 | 35.5 | 24 |
1FM-08-22WD | 13/16 "X16 | M22X1.5 | O 01 4 | WD-M2 2 | 12.8 | 14 | 38 | 27 |
1FM-10-20WD | 1 "X14 | M20X1.5 | O 01 6 | WD-M2 0 | 15.5 | 14 | 40 | 27 |
1FM-10-22WD | 1 "X14 | M22X1.5 | O 01 6 | WD-M2 2 | 15.5 | 14 | 40.5 | 27 |
1FM-12-18WD | 1,3 / 16 "x12 | M18X1.5 | O 01 8 | WD-M1 8 | 17 | 12 | 42.5 | 32 |
1FM-12-22WD | 1,3 / 16 "x12 | M22X1.5 | O 01 8 | WD-M2 2 | 17 | 14 | 45 | 32 |
1FM-16-27WD | 1,7 / 16 "X12 | M27X2 | O 02 1 | WD-B1 2 | 17.5 | 16 | 47.5 | 38 |
1FM-16-33WD | 1,7 / 16 "X12 | M33X2 | O 02 1 | WD-B1 6 | 17.5 | 18 | 51.5 | 41 |
1FM-20-42WD | 1,11 / 16 "X12 | M42X2 | O 02 5 | WD-B20 | 17.5 | 20 | 55.5 | 50 |
1FM-24-48WD | 2 "X12 | M48X2 | O 02 9 | WD-B24 | 17.5 | 22 | 57.5 | 55 |
