Jenis Produk: Fitting adaptor SAE Hidrolik Flange 1DFS9-RN Siku
Standar Industri: SAE J518, ISO 6162 DIN 2353, ISO 8434-1
Koneksi E ke gaya F: 90 ° ELBOW METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2
Bentuk: siku, lurus, blok dll
Peringkat tekanan kerja: Kode SAE 61 adalah 2,5 hingga 31,5 Mpa; Kode SAE 62 adalah 40 Mpa.
Bahan Kelengkapan: Kuningan; Baja karbon; Besi tahan karat
Aplikasi: Peralatan Pertanian, Proses Otomotif, Transfer Bahan Kimia, Peralatan Konstruksi, Transfer Bahan Bakar, Hidrolik, Peralatan Manufaktur, Kelautan, Penanganan Material, Peralatan Bergerak, Ladang Minyak, Pengemasan, Transportasi

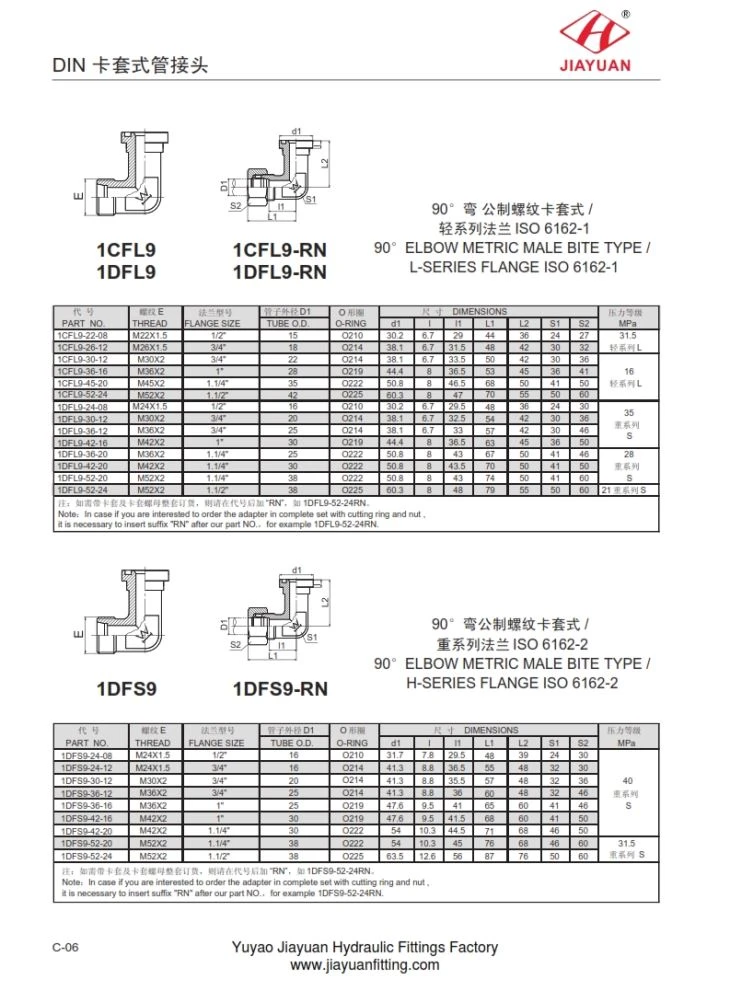

1DFS9-RN Elbow metric bite type H-series flange ISO 6162-2 Ukuran tabel grafik Dimensi sebagai berikut
BAGIAN NO. | E BENANG | UKURAN BENTUK | D1 | HAI O-RING | UKURAN | MPa | ||||||
TABUNG OD | d1 | l | l1 | L1 | L2 | S1 | S2 | |||||
1DFS9-24-08 | M24X1.5 | 1/2 " | 16 | O210 | 31.7 | 7.8 | 29.5 | 48 | 39 | 24 | 30 | 40 S |
1DFS9-24-12 | M24X1.5 | 3/4 " | 16 | O214 | 41.3 | 8.8 | 36.5 | 55 | 48 | 32 | 30 | |
1DFS9-30-12 | M30X2 | 3/4 " | 20 | O214 | 41.3 | 8.8 | 35.5 | 57 | 48 | 32 | 36 | |
1DFS9-36-12 | M36X2 | 3/4 " | 25 | O214 | 41.3 | 8.8 | 36 | 60 | 48 | 32 | 46 | |
1DFS9-36-16 | M36X2 | 1 " | 25 | O219 | 47.6 | 9.5 | 41 | 65 | 60 | 41 | 46 | |
1DFS9-42-16 | M42X2 | 1 " | 30 | O219 | 47.6 | 9.5 | 41.5 | 68 | 60 | 41 | 50 | |
1DFS9-42-20 | M42X2 | 1.1 / 4 " | 30 | O222 | 54 | 10.3 | 44.5 | 71 | 68 | 46 | 50 | |
1DFS9-52-20 | M52X2 | 1.1 / 4 " | 38 | O222 | 54 | 10.3 | 45 | 76 | 68 | 46 | 60 | 31.5 S |
1DFS9-52-24 | M52X2 | 1.1 / 2 " | 38 | O225 | 63.5 | 12.6 | 56 | 87 | 76 | 50 | 60 |
