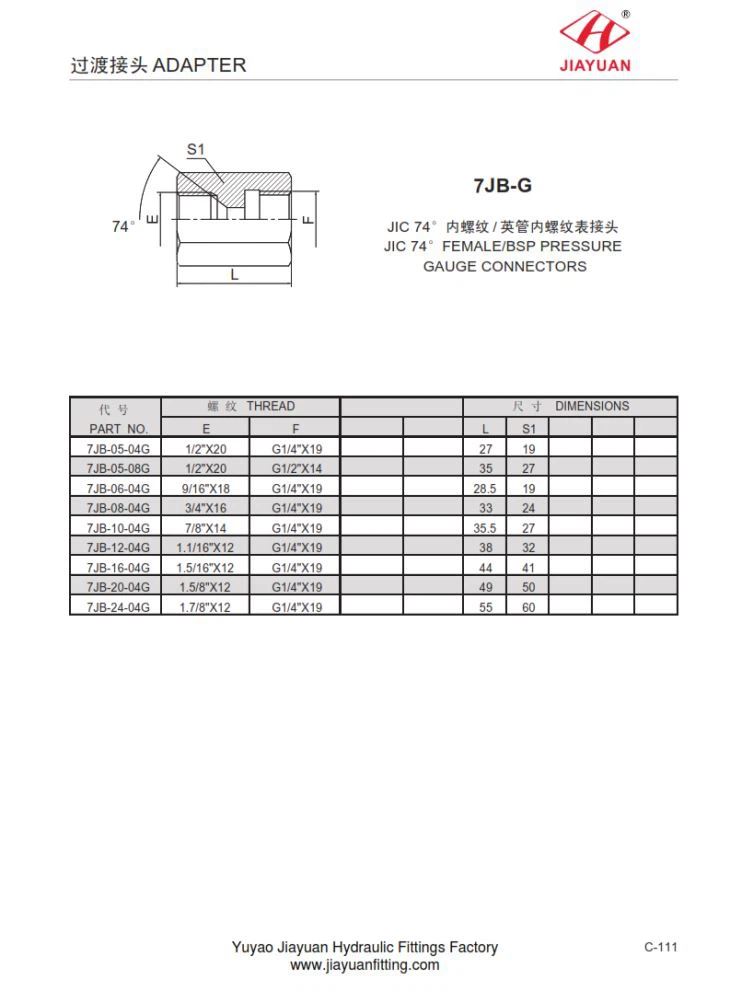

7JB-G JIC 74 ° FEMALE / BSP PRESSURE GAUGE CONNECTORS grafik ukuran sebagai berikut:
PAR T TIDAK | THREA D | DIMENSI S | ||
E | F | L. | S 1 | |
7JB-05-04 G | 1/2 "X2 0 | G1 / 4 "X1 9 | 2 7 | 1 9 |
7JB-05-08 G | 1/2 "X2 0 | G1 / 2 "X1 4 | 3 5 | 2 7 |
7JB-06-04 G | 9/16 "X1 8 | G1 / 4 "X1 9 | 28. 5 | 1 9 |
7JB-08-04 G | 3/4 "X1 6 | G1 / 4 "X1 9 | 3 3 | 2 4 |
7JB-10-04 G | 7/8 "X1 4 | G1 / 4 "X1 9 | 35. 5 | 2 7 |
7JB-12-04 G | 1.1 / 16 "X1 2 | G1 / 4 "X1 9 | 3 8 | 3 2 |
7JB-16-04 G | 1,5 / 16 "X1 2 | G1 / 4 "X1 9 | 4 4 | 4 1 |
7JB-20-04 G | 1,5 / 8 "X1 2 | G1 / 4 "X1 9 | 4 9 | 5 0 |
7JB-24-04 G | 1,7 / 8 "X1 2 | G1 / 4 "X1 9 | 5 5 | 6 0 |
