Jenis Produk: 5FLW-S / IN Hidrolik SAE Flange 3000PIS Inch Tube
Standar Industri: SAE J518, ISO 6162
Koneksi E ke gaya F: SAE Flange 3000PIS / INCH SOCKET-WELD TUBE
Bentuk: Lurus
Peringkat tekanan kerja: Kode SAE 61 adalah 2,5 hingga 31,5 Mpa; Kode SAE 62 adalah 40 Mpa.
Bahan Kelengkapan: Kuningan; Baja karbon; Besi tahan karat
Aplikasi: Peralatan Pertanian, Proses Otomotif, Transfer Bahan Kimia, Peralatan Konstruksi, Transfer Bahan Bakar, Hidrolik, Peralatan Manufaktur, Kelautan, Penanganan Material, Peralatan Bergerak, Ladang Minyak, Pengemasan, Transportasi

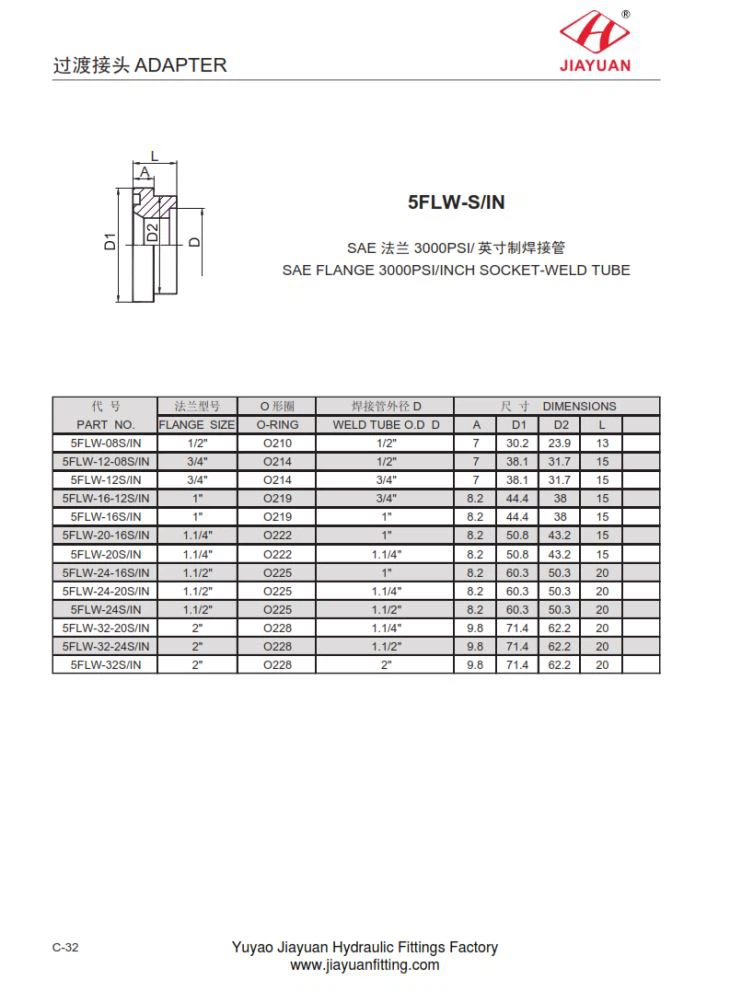

5FLW-S / IN SAE Flange 3000 PSI Adaptor Fittings Ukuran tabel tabel dimensi sebagai berikut
BAGIAN NO. | HAI | D | UKURAN | |||||
UKURAN BENTUK | O-RING | WELD TUBE OD D | SEBUAH | D1 | D2 | L. | ||
5FLW-08S / IN | 1/2 " | O210 | 1/2 " | 7 | 30.2 | 23.9 | 13 | |
5FLW-12-08S / IN | 3/4 " | O214 | 1/2 " | 7 | 38.1 | 31.7 | 15 | |
5FLW-12S / IN | 3/4 " | O214 | 3/4 " | 7 | 38.1 | 31.7 | 15 | |
5FLW-16-12S / IN | 1 " | O219 | 3/4 " | 8.2 | 44.4 | 38 | 15 | |
5FLW-16S / IN | 1 " | O219 | 1 " | 8.2 | 44.4 | 38 | 15 | |
5FLW-20-16S / IN | 1.1 / 4 " | O222 | 1 " | 8.2 | 50.8 | 43.2 | 15 | |
5FLW-20S / IN | 1.1 / 4 " | O222 | 1.1 / 4 " | 8.2 | 50.8 | 43.2 | 15 | |
5FLW-24-16S / IN | 1.1 / 2 " | O225 | 1 " | 8.2 | 60.3 | 50.3 | 20 | |
5FLW-24-20S / IN | 1.1 / 2 " | O225 | 1.1 / 4 " | 8.2 | 60.3 | 50.3 | 20 | |
5FLW-24S / IN | 1.1 / 2 " | O225 | 1.1 / 2 " | 8.2 | 60.3 | 50.3 | 20 | |
5FLW-32-20S / IN | 2 " | O228 | 1.1 / 4 " | 9.8 | 71.4 | 62.2 | 20 | |
5FLW-32-24S / IN | 2 " | O228 | 1.1 / 2 " | 9.8 | 71.4 | 62.2 | 20 | |
5FLW-32S / IN | 2 " | O228 | 2 " | 9.8 | 71.4 | 62.2 | 20 |
