Jenis Produk: 2NF o cincin perlengkapan tabung segel wajah
Standar Industri: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Koneksi E ke gaya F: NPT MALE / ORFS FEMALE
Bentuk: Siku, lurus, Tee, Salib dll.
ORFS Fittings Peringkat tekanan kerja: 3215 psi hingga 5800 psi, 216 bar hingga 400 bar.
Orfs wajah datar kit ukuran cincin dan desain seal cincin O ring juga bisa kami tawarkan.
Perbedaan antara o ring face seal dan o ring boss seal
Bahan Kelengkapan: Kuningan; Baja karbon; Besi tahan karat
Aplikasi: Peralatan Pertanian, Proses Otomotif, Transfer Bahan Kimia, Peralatan Konstruksi, Transfer Bahan Bakar, Hidrolik, Peralatan Manufaktur, Kelautan, Penanganan Material, Peralatan Bergerak, Ladang Minyak, Pengemasan, Transportasi

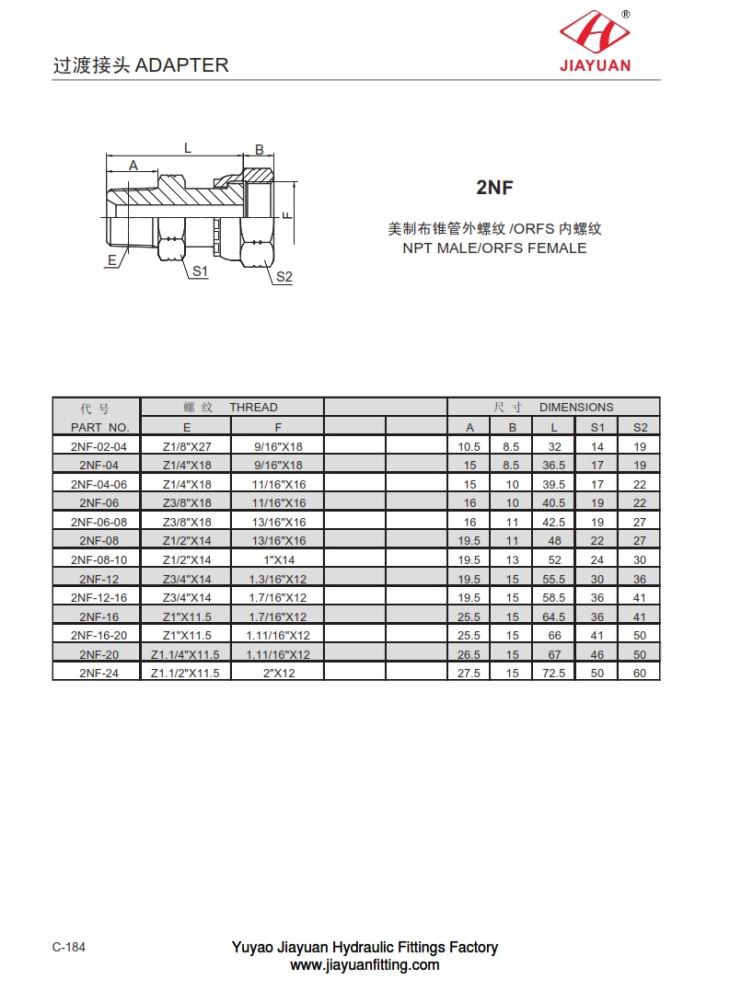

2NF npt laki-laki / ORFS perempuan tabel tabel Ukuran Dimensi sebagai berikut
PAR T TIDAK | THREA D | DIMENSI S | |||||||
E | F | SEBUAH | B | L. | S 1 | S 2 | |||
2NF-02-0 4 | Z1 / 8 "X2 7 | 9/16 "X1 8 | 10. 5 | 8. 5 | 3 2 | 1 4 | 1 9 | ||
2NF-0 4 | Z1 / 4 "X1 8 | 9/16 "X1 8 | 1 5 | 8. 5 | 36. 5 | 1 7 | 1 9 | ||
2NF-04-0 6 | Z1 / 4 "X1 8 | 11/16 "X1 6 | 1 5 | 1 0 | 39. 5 | 1 7 | 2 2 | ||
2NF-0 6 | Z3 / 8 "X1 8 | 11/16 "X1 6 | 1 6 | 1 0 | 40. 5 | 1 9 | 2 2 | ||
2NF-06-0 8 | Z3 / 8 "X1 8 | 13/16 "X1 6 | 1 6 | 1 1 | 42. 5 | 1 9 | 2 7 | ||
2NF-0 8 | Z1 / 2 "X1 4 | 13/16 "X1 6 | 19. 5 | 1 1 | 4 8 | 2 2 | 2 7 | ||
2NF-08-1 0 | Z1 / 2 "X1 4 | 1 "X1 4 | 19. 5 | 1 3 | 5 2 | 2 4 | 3 0 | ||
2NF-1 2 | Z3 / 4 "X1 4 | 1.3 / 16 "X1 2 | 19. 5 | 1 5 | 55. 5 | 3 0 | 3 6 | ||
2NF-12-1 6 | Z3 / 4 "X1 4 | 1,7 / 16 "X1 2 | 19. 5 | 1 5 | 58. 5 | 3 6 | 4 1 | ||
2NF-1 6 | Z1 "X11. 5 | 1,7 / 16 "X1 2 | 25. 5 | 1 5 | 64. 5 | 3 6 | 4 1 | ||
2NF-16-2 0 | Z1 "X11. 5 | 1,11 / 16 "X1 2 | 25. 5 | 1 5 | 6 6 | 4 1 | 5 0 | ||
2NF-2 0 | Z1.1 / 4 "X11. 5 | 1,11 / 16 "X1 2 | 26. 5 | 1 5 | 6 7 | 4 6 | 5 0 | ||
2NF-2 4 | Z1.1 / 2 "X11. 5 | 2 "X1 2 | 27. 5 | 1 5 | 72. 5 | 5 0 | 6 0 | ||
