Adaptor hidrolik adalah salah satu jenis fitting hidrolik, untuk menghubungkan pipa hidrolik, perakitan selang hidrolik dan alat kelengkapan tabung. Ada berbagai nama seperti adaptor hidrolik (Inggris), alat kelengkapan hidrolik (paling populer), konektor hidrolik dll.
Jenis adaptor hidrolik dengan standar berbeda sebagai berikut:
Standar SAE Amerika seperti SAE J514, SAE J1453, SAE J518 dll, alat kelengkapan tabung hidrolik benang SAE, adaptor pipa, adaptor flensa, alat kelengkapan pipa.
Benang JIS standar JIS B2351 inci Jepang dan fitting ujung ulir metrik JIS B8363 dan adaptor untuk rakitan selang hidrolik.
Standar Inggris BS 5200, adaptor dan konektor hidrolik ulir BSP.
Standar Jerman DIN 2353,Alat kelengkapan tabung kompresi benang metrikdengan cutting ring, fitting metrik flareless, dan kopling.

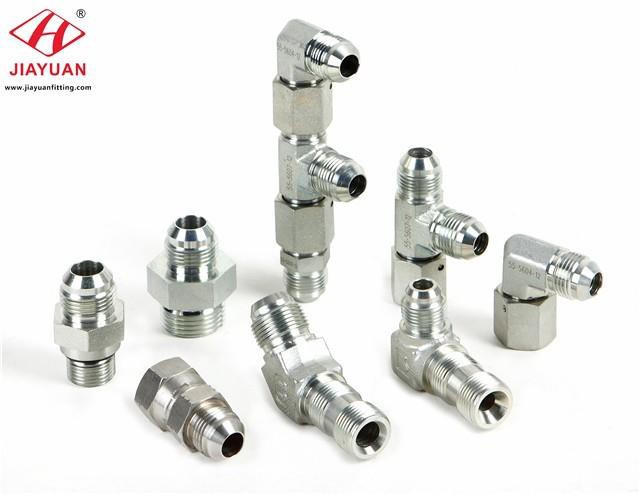

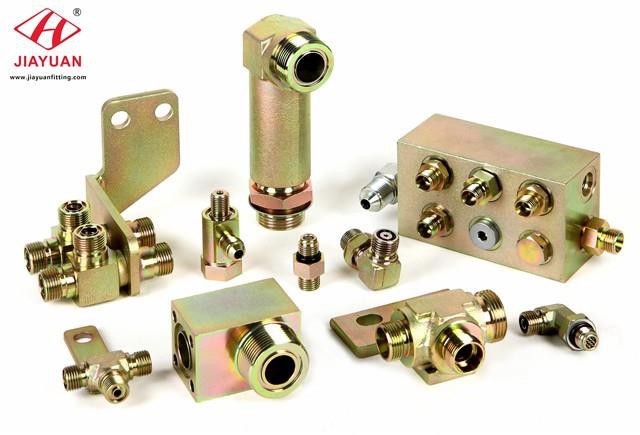

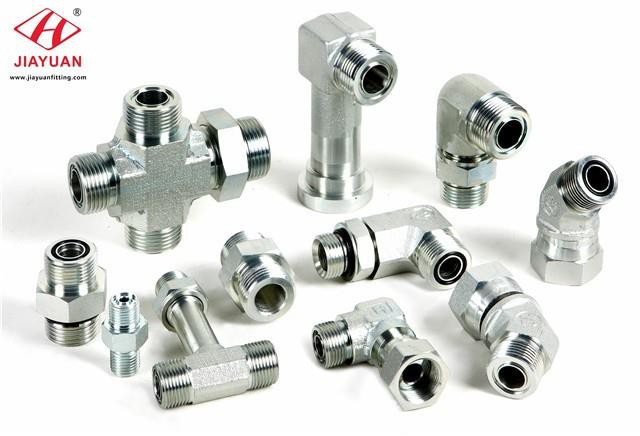

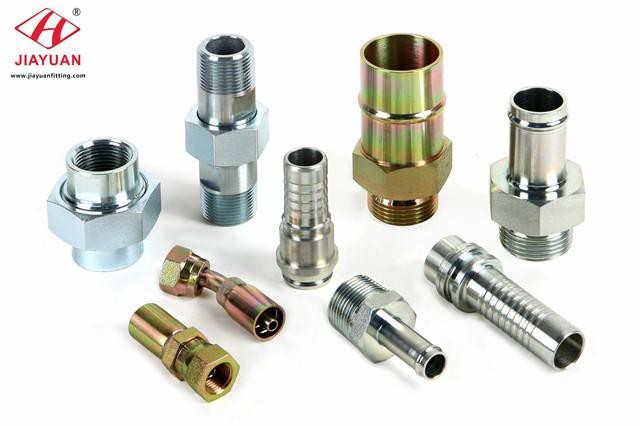

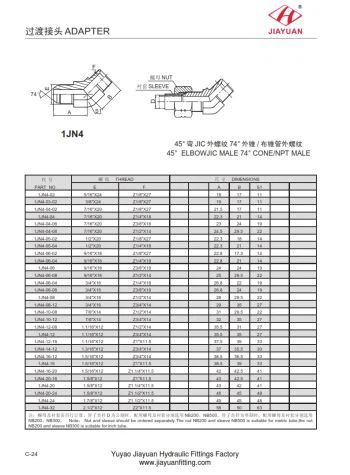

Jiayuan adalah produsen alat kelengkapan adaptor hidrolik terkemuka dan profesional, kami menawarkan berbagai standar dan ukuran khusus seperti adaptor selang hidrolik, adaptor hidrolik metrik, adaptor hidrolik sae, adaptor flensa sae, adaptor konversi untuk satu sama lain jenis JIC, metrik, npt, orfs , pria ke wanita dll
Jiayuan membuat kemajuan yang baik dalam manajemen kendali mutu dan teknologi produksi otomasi, berusaha untuk menjadi yang terdepan di bidang perlengkapan hidrolik. Kami mengontrol kualitas produk secara ketat dari bahan hingga produk jadi sesuai dengan ISO 9001, laporan PPAP termasuk laporan komposisi bahan kimia, inspeksi dimensi, uji semprotan garam, pengujian tekanan, uji torsi dan laporan kebersihan dll.
Produk kami digunakan di berbagai peralatan industri seperti mesin konstruksi teknik, peralatan pertanian, kendaraan komersial, peralatan petrokimia, pembuatan kapal maritim dll. Produk kami diekspor ke Jerman, Jepang, Inggris, Italia, Kanada, Rusia, Brazil dll.
Jika Anda memiliki pertanyaan apapun, jangan ragu untuk menghubungi kami.
jyray@72338.com
Berbagai ukuran standar adaptor hidrolik JIC, ORFS, SAE flange, DIN, JIS sebagai berikut:
Dimensi ujung kerucut DIN 2353 24 ° (DIN 3861 / ISO 8434-1) dari fitting tabung kompresi
TubeO.D. | ||||||
Ukuran | T1 | Ø D3mm | Ø D4mm | Ø D5mm | L1mm | L2mm |
04-LL | M08×1.0 | 04 | 5.0 | 3.0 | 4.1 | 8 |
06-LL | M10×1.0 | 06 | 7.5 | 4.5 | 5.6 | 8 |
08-LL | M12×1.0 | 08 | 9.5 | 6.0 | 5.6 | 9 |
10-LL | M14×1.0 | 10 | 11.5 | 8.0 | 5.6 | 9 |
12-LL | M16×1.0 | 12 | 13.5 | 10.0 | 6.1 | 9 |
06-L | M12×1.5 | 06 | 8.1 | 4.0 | 7.1 | 10 |
08-L | M14×1.5 | 08 | 10.1 | 6.0 | 7.1 | 10 |
10-L | M16×1.5 | 10 | 12.3 | 8.0 | 7.1 | 11 |
12-L | M18×1.5 | 12 | 14.3 | 10.0 | 7.1 | 11 |
15-L | M22×1.5 | 15 | 17.3 | 12.0 | 7.1 | 12 |
18-L | M26×1.5 | 18 | 20.3 | 15.0 | 7.6 | 12 |
22-L | M30×2.0 | 22 | 24.3 | 19.0 | 7.6 | 14 |
28-L | M36×2.0 | 28 | 30.3 | 24.0 | 7.6 | 14 |
35-L | M45×2.0 | 35 | 38.0 | 30.0 | 10.6 | 16 |
42-L | M52×2.0 | 42 | 45.0 | 36.0 | 11.1 | 16 |
06-S | M14×1,5 | 06 | 8.1 | 4.0 | 7.1 | 12 |
08-S | M16×1.5 | 08 | 10.1 | 5.0 | 7.1 | 12 |
10-S | M18×1.5 | 10 | 12.3 | 7.0 | 7.6 | 12 |
12-S | M20×1.5 | 12 | 14.3 | 8.0 | 7.6 | 12 |
14-S | M22×1.5 | 14 | 16.3 | 10.0 | 8.1 | 14 |
16-S | M24×1.5 | 16 | 18.3 | 12.0 | 8.6 | 14 |
20-S | M30×2.0 | 20 | 22.9 | 16.0 | 10.6 | 16 |
25-S | M36×2.0 | 25 | 27.9 | 20.0 | 12.1 | 18 |
30-S | M42×2.0 | 30 | 33.0 | 25.0 | 13.6 | 20 |
38-S | M52×2.0 | 38 | 41.0 | 32.0 | 16.1 | 22 |
24 ° DKO konektor putar (DIN 3865 / DIN EN ISO 8434-4) dimensi fitting tabung kompresi
TubeO.D. | Ø D5mm | |||
Ukuran | T | Ø D2mm | Threadbersamarediameter | SWmm |
06-L | M12×1.5 | 5.5 | 10.38 | 14 |
08-L | M14×1.5 | 7.5 | 12.38 | 17 |
10-L | M16×1.5 | 9.7 | 14.38 | 19 |
12-L | M18×1.5 | 11.7 | 16.38 | 22 |
15-L | M22×1.5 | 14.7 | 20.38 | 27 |
18-L | M26×1.5 | 17.7 | 24.38 | 32 |
22-L | M30×2.0 | 21.7 | 27.84 | 36 |
28-L | M36×2.0 | 27.7 | 33.84 | 41 |
35-L | M45×2.0 | 34.5 | 42.84 | 50 |
42-L | M52×2.0 | 41.5 | 49.84 | 60 |
06-S | M14×1.5 | 5.5 | 12.38 | 17 |
08-S | M16×1.5 | 7.5 | 14.38 | 19 |
10-S | M18×1.5 | 9.7 | 16.38 | 22 |
12-S | M20×1.5 | 11.7 | 18.38 | 24 |
14-S | M22×1.5 | 13.5 | 20.38 | 27 |
16-S | M24×1.5 | 15.5 | 22.38 | 30 |
20-S | M30×2.0 | 19.5 | 29.84 | 36 |
25-S | M36×2.0 | 24.5 | 33.84 | 46 |
30-S | M42×2.0 | 29.5 | 39.84 | 50 |
38-S | M52×2.0 | 37.5 | 49.84 | 60 |

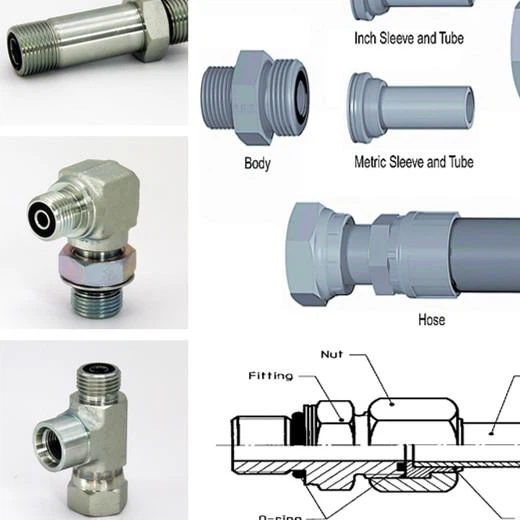

Ujung fitting tabung hidrolik ORFS jantan (ISO 8434-3 / SAE J1453) / dimensi
Ø D5 Ukuran | TubeO.D. | T UN / UNF | T UtamathreadØ mm | Ø D3mm | |
inci | mm | ||||
4 | 1/4 | 6 | 9/16-18 | 14.0 | 5.0 |
6 | 5/16,3/8 | 8, 10 | 11/16-16 | 17.0 | 6.5 |
8 | 1/2 | 12 | 13/16-16 | 20.5 | 9.5 |
10 | 5/8 | 14, 15, 16 | 1-14 | 25.0 | 12.5 |
12 | 3/4 | 18, 20 | 1 3/16-12 | 30.0 | 15.5 |
16 | 7/8,1 | 22, 25 | 1 7/16-12 | 36.0 | 20.5 |
20 | 1 1/4 | 28, 30, 32 | 1 11/16-12 | 42.5 | 26.0 |
24 | 1 1/2 | 35, 38 | 2-12 | 50.5 | 32.0 |
32 | 2 | 50 | 2 1/2-12 | 63.0 | 45.0 |
Konektor putar fitting hidrolik ORFS betina (ISO 8434-3 / SAE J1453) dimensi
Ukuran | TubeO.D. | T UN / UNF | Ø D5 Threadbersamare diameter mm | SWmm | Ø D2mm | |
inci | mm | |||||
4 | 1/4 | 6 | 9/16-18 | 12.5 | 17 | 4.0 |
6 | 5/16,3/8 | 8, 10 | 11/16-16 | 16.0 | 22 | 6.5 |
8 | 1/2 | 12 | 13/16-16 | 19.0 | 24 | 9.0 |
10 | 5/8 | 14, 15, 16 | 1-14 | 23.0 | 30 | 11.5 |
12 | 3/4 | 18, 20 | 1 3/16-12 | 28.0 | 36 | 14.0 |
16 | 7/8,1 | 22, 25 | 1 7/16-12 | 34.0 | 41 | 20.0 |
20 | 1 1/4 | 28, 30, 32 | 1 11/16-12 | 40.5 | 50 | 26.0 |
24 | 1 1/2 | 35, 38 | 2-12 | 48.0 | 60 | 32.0 |
Dimensi ujung tabung flare fitting hidrolik JIC jantan (ISO 8434-2 / SAE J514)
Ukuran | TubeO.D. | T UN / UNF | T UtamathreadØ mm | Ø D1mm | |
inci | mm | ||||
4 | 1/4 | 6 | 7/16-20 | 11.0 | 4.5 |
5 | 5/16 | 8 | 1/2-20 | 12.5 | 6.0 |
6 | 3/8 | 10 | 9/16-18 | 14.0 | 7.5 |
8 | 1/2 | 12 | 3/4-16 | 19.0 | 10.0 |
10 | 5/8 | 14, 15, 16 | 7/8-14 | 22.0 | 12.5 |
12 | 3/4 | 18, 20 | 1 1/16-12 | 27.0 | 15.5 |
14 | 7/8 | 22 | 1 3/16-12 | 30.0 | 18.0 |
16 | 1 | 25 | 1 5/16-12 | 33.0 | 21.5 |
20 | 1 1/4 | 28, 30, 32 | 1 5/8-12 | 41.0 | 27.5 |
24 | 1 1/2 | 35, 38 | 1 7/8-12 | 47.5 | 33.0 |
28* | 1 3/4 | 42 | 2 1/4-12 | 57.0 | 39.0 |
32 | 2 | – | 2 1/2-12 | 63.5 | 45.0 |
Konektor putar fitting hidrolik JIC wanita (ISO 8434-2 / SAE J514) dimensi
Ukuran | TubeO.D. | T UN / UNF | SWmm | Ø D5 Threadbersamare diameter mm | Ø D2mm | |
inci | mm | |||||
4 | 1/4 | 6 | 7/16-20 | 17 | 10.0 | 4.4 |
5 | 5/16 | 8 | 1/2-20 | 17 | 11.5 | 6.0 |
6 | 3/8 | 10 | 9/16-18 | 19 | 13.0 | 7.5 |
8 | 1/2 | 12 | 3/4-16 | 22 | 17.5 | 9.9 |
10 | 5/8 | 14, 15, 16 | 7/8-14 | 27 | 20.5 | 12.3 |
12 | 3/4 | 18, 20 | 1 1/16-12 | 32 | 25.0 | 15.5 |
14 | 7/8 | 22 | 1 3/16-12 | 35 | 28.0 | 18.0 |
16 | 1 | 25 | 1 5/16-12 | 38 | 31.0 | 21.5 |
20 | 1 1/4 | 28, 30, 32 | 1 5/8-12 | 50 | 39.0 | 27.5 |
24 | 1 1/2 | 35. 38 | 1 7/8-12 | 60 | 45.5 | 33.0 |
32 | 2 | – | 2 1/2-12 | 75 | 61.5 | 45.0 |
Adaptor Hidraulik Pria 60 ° ujung kerucut (ISO / DIS 8434-6)
Ukuran | T BSPP | D2 mm | D3 mm | L1 mm | T1 | T2 BSPP | |
BSPT | NPT (F) | ||||||
02 | G1/8A | 3.5 | 7.5 | 8 | 1/8 1/4 | 1/8 1/4 | 1/8 |
04 | G1/4A | 4.7 | 10.4 | 11 | 1/4 1/8 3/8 | 1/4 1/8 3/8 | 1/4 1/8 |
06 | G3/8A | 7.9 | 14.0 | 12 | 3/8 1/4 1/2 | 3/8 1/4 1/2 | 3/8 1/4 |
08 | G1/2A | 11.1 | 17.5 | 14 | 1/2 3/8 | 1/2 3/8 3/4 | 1/2 1/4 3/8 |
10 | G5/8A | 14.3 | 19.3 | 16 | 1/2 3/4 | 1/2 5/8 | |
12 | G3/4A | 16.7 | 22.9 | 16 | 3/4 1/2 1 | 3/4 1/2 1 | 3/4 1/4 3/8 1/2 5/8 |
16 | G1 A | 22.2 | 28.7 | 19 | 1 3/4 | 1 3/4 | 1 1/2 5/8 3/4 |
20 | G1 1/4A | 28.6 | 36.8 | 22 | 1 1/4 | 3/4 1 1 1/4 | |
24 | G1 1/2A | 33.3 | 42.7 | 22 | 1 1/2 | 1 1 1/4 1 1/2 | |
32 | G2 A | 46.0 | 54.6 | 25 | 1 1/2 2 | ||
Dimensi ujung kerucut DIN 60 ° (DIN 7631)
TubeO.D.mm | T | Ø D1mm | Ø D2mm | L1 mm | SWmm |
4–5 06 08 10 12 15 18 22 28 35 42 | M10×1.5 M12×1.5 M14×1.5 M16×1.5 M18×1.5 M22×1.5 M26×1.5 M30×1.5 M38×1.5 M45×1.5 M52×1.5 | 3 4 6 8 10 12 15 19 25 32 39 | 8.0 9.0 11.0 13.0 15.0 19.0 22.0 26.0 33.0 40.0 47.0 | 8 10 10 11 11 12 12 14 14 16 16 | 11 12 14 17 19 24 27 32 41 46 55 |
