Katalog alat kelengkapan BSP adalah popluare di Inggris, Irlandia, Kanada, Amerika Serikat dll.
Semua fiting kerucut BSP 60 dijelaskan oleh BS5200 sama dengan standar ISO 8434-6.
Ukuran bagan ukuran benang BSPP adalah G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 dll.
BSP adalah pipa standar inggris dengan bentuk ulir 55 derajat.
Utas BSPP sesuai dengan standar ISO 228 dan AS 1722.2.
BSPP panduan benang untuk banyak jenis penyegelan seperti BSPP 60 ° kerucut untuk konektor tabung kursi, port BSPP dengan seal berikat, port BSPP dengan seal ED, BSPP oring + ring penahan tipe G, BSPP o-ring tipe sael disesuaikan H, BSPP cutting face segel tipe B.
Adaptor pemasangan pipa BSPP ke banyak ujung seperti BSPT jantan, ORFS jantan, Metric ISO 6149-3 stud, JIC jantan 74 cone, Komatsu metrik 60 cone, NPT jantan, SAE ORB ISO 11926-3 fitting, tabung butt-weld, JIC female 37cone, ORFS perempuan dll

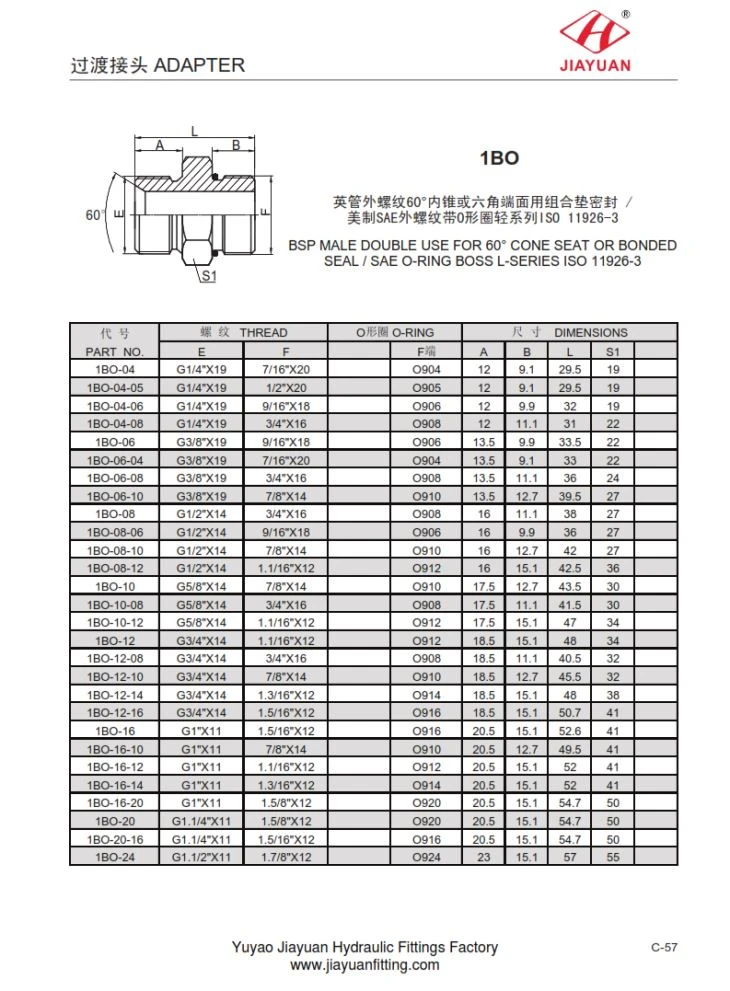

1BO BSP LAKI-LAKI PENGGUNAAN GANDA UNTUK 60 ° KURSI KERING ATAU BONDED SEAL / SAE O-RING BOSS L-SERI ISO 11926-3 Fiting dimensi ukuran grafik sebagai berikut:
PA RT N O. | T HR EA D | HAI O- RING | DIM E N S I O NS | ||||
E | F | F | SEBUAH | B | L. | S 1 | |
1 B O- 04 | G 1/4 " X 19 | 7/16 " X 20 | O 904 | 12 | 9.1 | 29.5 | 19 |
1 B O- 04 - 05 | G 1/4 " X 19 | 1/2 " X 20 | O 905 | 12 | 9.1 | 29.5 | 19 |
1 B O- 04 - 06 | G 1/4 " X 19 | 9/16 " X 18 | O 906 | 12 | 9.9 | 32 | 19 |
1 B O- 04 - 08 | G 1/4 " X 19 | 3/4 " X 16 | O 908 | 12 | 11.1 | 31 | 22 |
1 B O- 06 | G 3/8 " X 19 | 9/16 " X 18 | O 906 | 13.5 | 9.9 | 33.5 | 22 |
1 B O- 06 - 04 | G 3/8 " X 19 | 7/16 " X 20 | O 904 | 13.5 | 9.1 | 33 | 22 |
1 B O- 06 - 08 | G 3/8 " X 19 | 3/4 " X 16 | O 908 | 13.5 | 11.1 | 36 | 24 |
1 B O- 06 - 10 | G 3/8 " X 19 | 7/8 " X 14 | O 910 | 13.5 | 12.7 | 39.5 | 27 |
1 B O- 08 | G 1/2 " X 14 | 3/4 " X 16 | O 908 | 16 | 11.1 | 38 | 27 |
1 B O- 08 - 06 | G 1/2 " X 14 | 9/16 " X 18 | O 906 | 16 | 9.9 | 36 | 27 |
1 B O- 08 - 10 | G 1/2 " X 14 | 7/8 " X 14 | O 910 | 16 | 12.7 | 42 | 27 |
1 B O- 08-12 | G 1/2 " X 14 | 1.1 / 16 " X 12 | O 912 | 16 | 15.1 | 42.5 | 36 |
1 B O- 10 | G 5/8 " X 14 | 7/8 " X 14 | O 910 | 17.5 | 12.7 | 43.5 | 30 |
1 B O- 10 - 08 | G 5/8 " X 14 | 3/4 " X 16 | O 908 | 17.5 | 11.1 | 41.5 | 30 |
1 B O- 10 - 12 | G 5/8 " X 14 | 1.1 / 16 " X 12 | O 912 | 17.5 | 15.1 | 47 | 34 |
1 B O- 12 | G 3/4 " X 14 | 1.1 / 16 " X 12 | O 912 | 18.5 | 15.1 | 48 | 34 |
1 B O 12 - 08 | G 3/4 " X 14 | 3/4 " X 16 | O 908 | 18.5 | 11.1 | 40.5 | 32 |
1 B O 12 - 10 | G 3/4 " X 14 | 7/8 " X 14 | O 910 | 18.5 | 12.7 | 45.5 | 32 |
1 B O 12 - 14 | G 3/4 " X 14 | 1.3 / 16 " X 12 | O 914 | 18.5 | 15.1 | 48 | 38 |
1 B O 12 - 16 | G 3/4 " X 14 | 1,5 / 16 " X 12 | O 916 | 18.5 | 15.1 | 50.7 | 41 |
1 B O- 16 | G 1 " X 11 | 1,5 / 16 " X 12 | O 916 | 20.5 | 15.1 | 52.6 | 41 |
1 B O- 16 - 10 | G 1 " X 11 | 7/8 " X 14 | O 910 | 20.5 | 12.7 | 49.5 | 41 |
1 B O- 16 - 12 | G 1 " X 11 | 1.1 / 16 " X 12 | O 912 | 20.5 | 15.1 | 52 | 41 |
1 B O- 16 - 14 | G 1 " X 11 | 1.3 / 16 " X 12 | O 914 | 20.5 | 15.1 | 52 | 41 |
1 B O- 16 - 20 | G 1 " X 11 | 1,5 / 8 " X 12 | O 920 | 20.5 | 15.1 | 54.7 | 50 |
1 B O- 20 | G 1.1 / 4 " X 11 | 1,5 / 8 " X 12 | O 920 | 20.5 | 15.1 | 54.7 | 50 |
1 B O- 20 - 16 | G 1.1 / 4 " X 11 | 1,5 / 16 " X 12 | O 916 | 20.5 | 15.1 | 54.7 | 50 |
1 B O- 24 | G 1.1 / 2 " X 11 | 1,7 / 8 " X 12 | O 924 | 23 | 15.1 | 57 | 55 |
