Kategori produk: SAE 37 deg flare fittings adapter
Bahan: baja karbon, stainless steel atau paduan tembaga

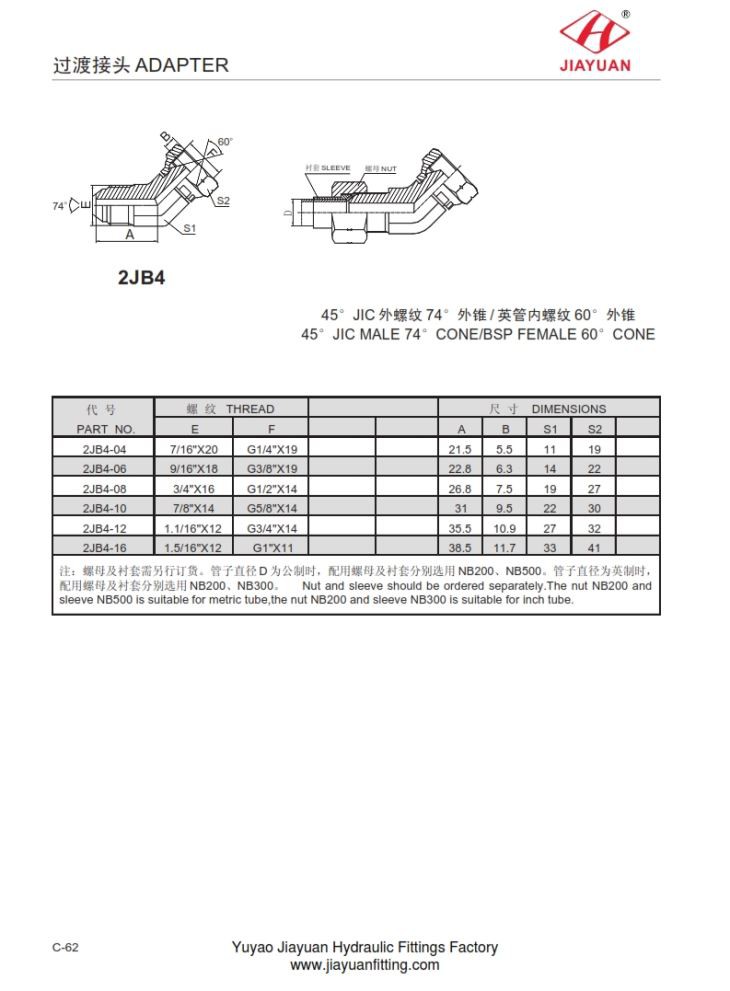

2JB4 45 ° JIC MALE 74 ° CONE / BSP FEMALE 60 ° CONE Grafik dimensi sebagai berikut:
PAR T TIDAK | THREA D | DIMENSI S | |||||
E | F | SEBUAH | B | S 1 | S 2 | ||
2JB4-0 4 | 7/16 "X2 0 | G1 / 4 "X1 9 | 21. 5 | 5. 5 | 1 1 | 1 9 | |
2JB4-0 6 | 9/16 "X1 8 | G3 / 8 "X1 9 | 22. 8 | 6. 3 | 1 4 | 2 2 | |
2JB4-0 8 | 3/4 "X1 6 | G1 / 2 "X1 4 | 26. 8 | 7. 5 | 1 9 | 2 7 | |
2JB4-1 0 | 7/8 "X1 4 | G5 / 8 "X1 4 | 3 1 | 9. 5 | 2 2 | 3 0 | |
2JB4-1 2 | 1.1 / 16 "X1 2 | G3 / 4 "X1 4 | 35. 5 | 10. 9 | 2 7 | 3 2 | |
2JB4-1 6 | 1,5 / 16 "X1 2 | G1 "X1 1 | 38. 5 | 11. 7 | 3 3 | 4 1 | |
